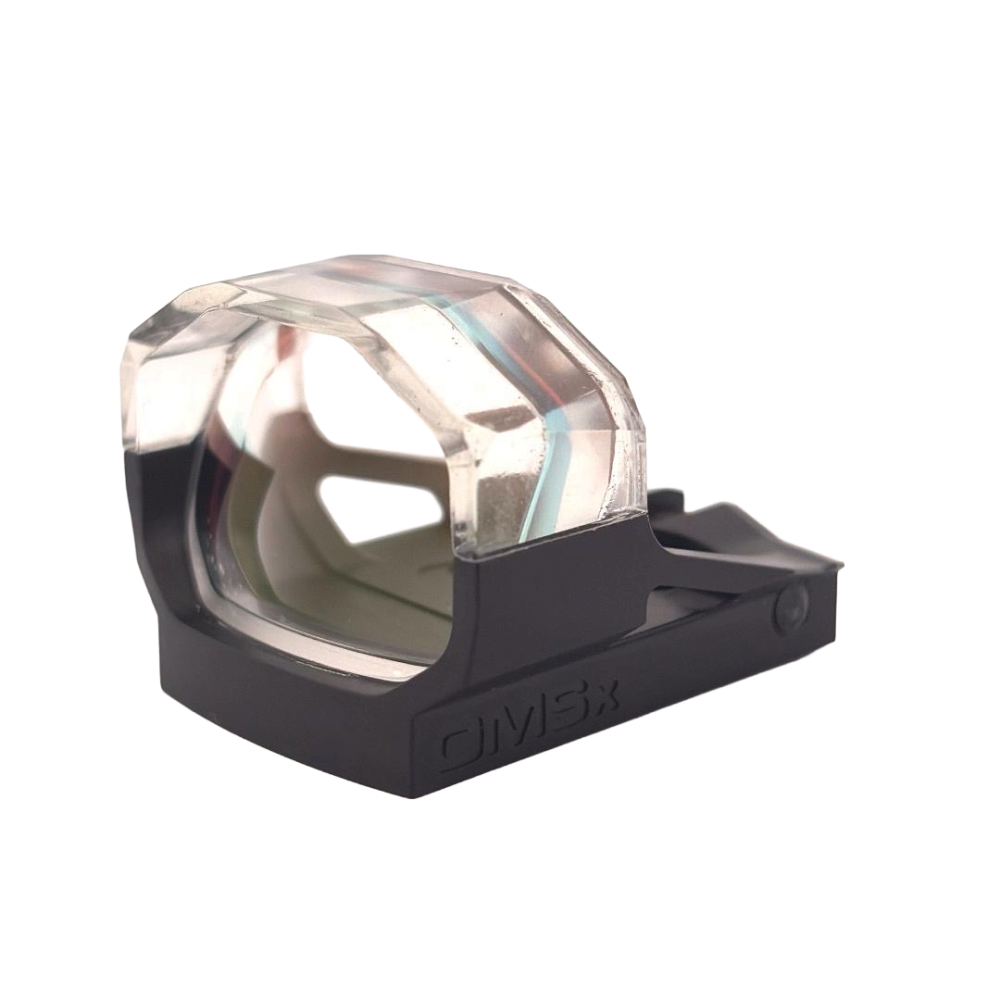

Shield OMSx [Glass]

This red dot uses the Shield RMSc footprint standard.

Essential info

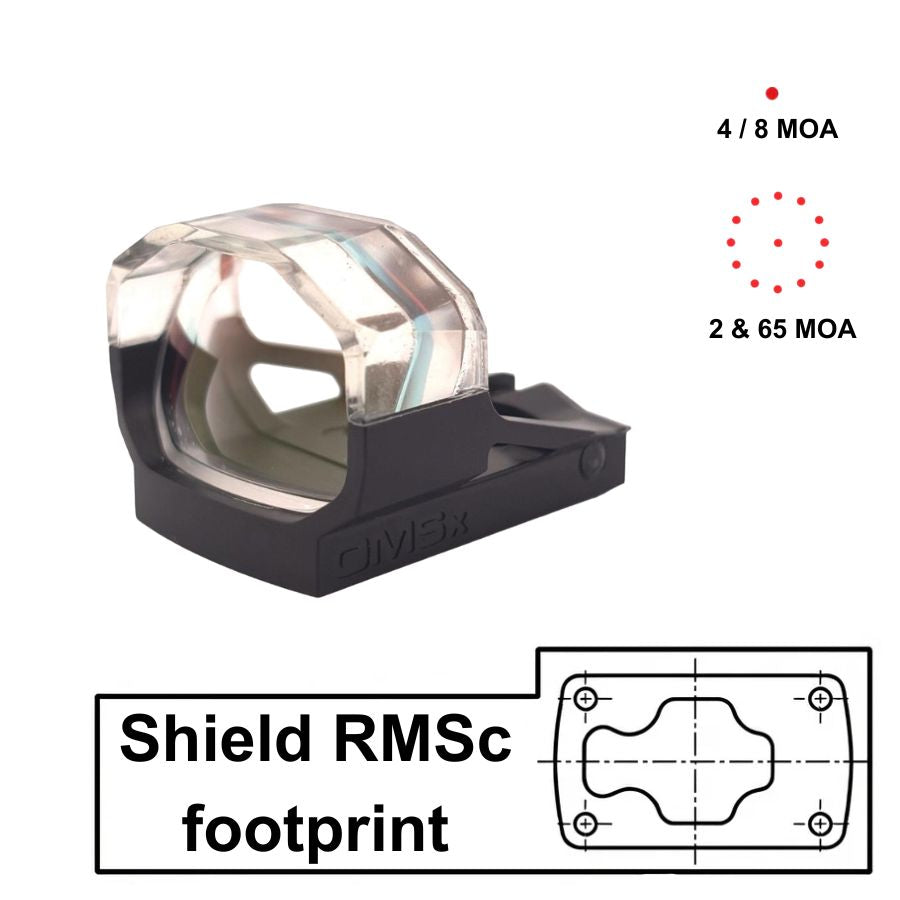

• Footprint standard: Shield RMSc footprint standard
• Reticle: 4 MOA dot / 8 MOA dot / 2 MOA dot & 65 MOA circle [red]
• Window size [height x width]: 21.0 x 28.0 mm [0.83 x 1.10"]
• Total dimensions [length x width x height]: 40.8 x 34.0 x 27.3 mm [1.61 x 1.34 x 1.07"]

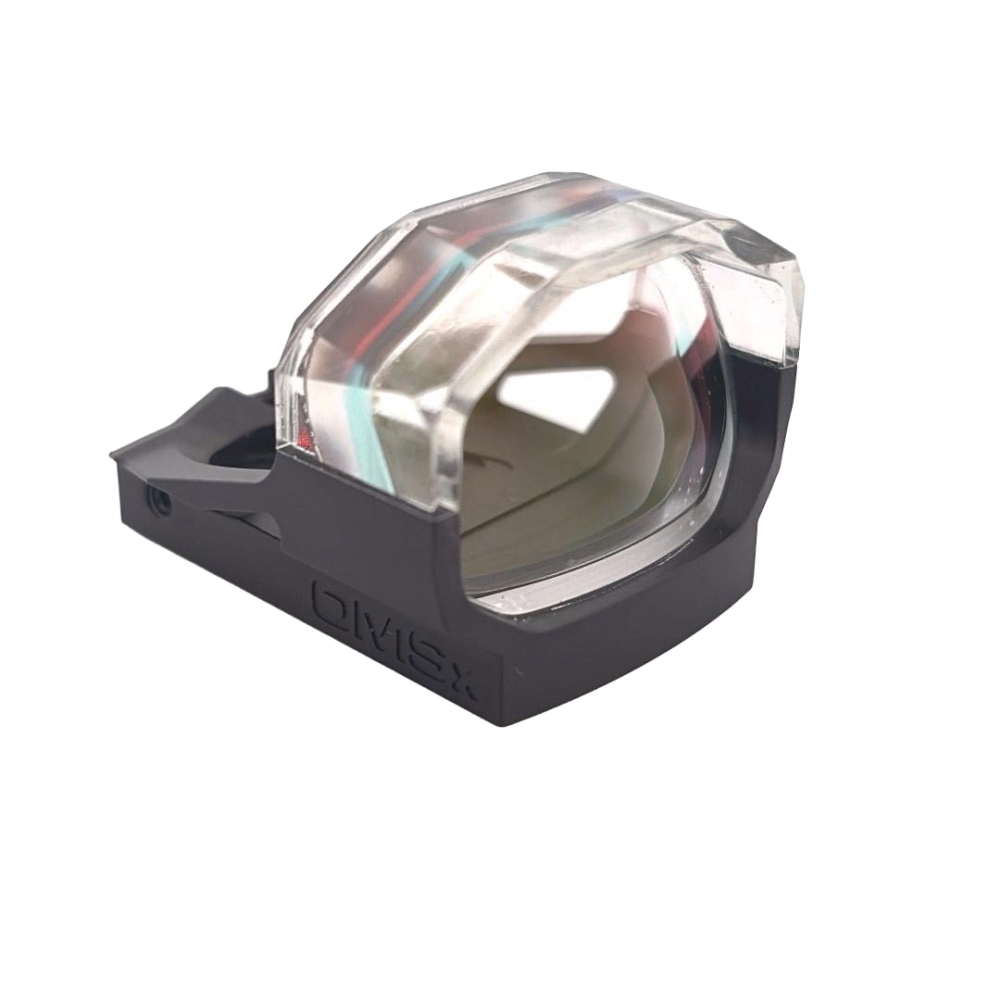

Introducing the SHIELD OMSx - a next generation micro red dot sight engineered for high level competitive shooting.

The OMSx differentiates itself from our Mini-Sight range through an 80% increase in lens area, significantly expanding the field of view while maintaining a true to colour, distortion free optical image. The enlarged viewing window enhances dot tracking, target transitions, and situational awareness during high speed stages.

Featuring SHIELD's translucent roof architecture, first implemented on the OMSsc, the OMSx delivers an unrestricted sight picture with almost zero visual obstruction.

The design features include:

• Translucent roof architecture for enhanced brightness and field of view
• Wide viewing window inspired by the RMSx competition optic
• Transparent acrylic hood for an unobstructed view
• Aerospace grade anodized T6 6082 aluminium housing
• Octagon-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight
• SHIELD's patented mechanism, enabling co-witnessing with standard iron sights
• No click adjustment, making it infinitely more accurate when zeroing
• Auto brightness adjustment, so it can always be on and ready
• CR2032 3V lithium, 20,000 hours in average daylight
• IP67 rated for dust and water resistance

Technical Specification

Optical Characteristics

• Light Source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
• Red Dot Size Options: 4 MOA, 8 MOA, 65/2 Ring and Dot.
• Lens: Octagon-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
• Lens Coating: Hard coating with anti-reflective, colour-free coating that minimizes visible signature.

Electronics

• Battery: One 3V lithium metal battery, CR2032.
• Battery Life: 20,000 hours in average daylight with a CR2032.
• Battery Fitting: Underneath.
• Brightness Adjustment: Automatic.
• Brightness Range: Lowest - compatible with Night Vision. Highest - visible against the sky in bright daylight.

Exterior

• Housing material: Aerospace grade anodized aluminium (6082 T6), with acrylic roof.
• Colour: Matte black with a transparent roof.
• Dimensions: Sight only (L x W x H) 40.8 mm x 34 mm x 27.3 mm / 1.61" x 1.34" x 1.07".
• Weight: 27.6 grams / 1 ounce (excluding battery).
• Mount: The SHIELD footprint - 100+ mounting solutions.
• Water immersion: 3 feet for 30 minutes (IP67).
