Optics ready plates for Dan Wesson DWX Optics Ready

This collection contains optic plates for the Dan Wesson DWX Optics Ready. The plate goes into the factory optic cut of the slide and takes the red dot on top. Every plate is made for one footprint or a group of footprints, so you choose it by the footprint of your red dot.

Footprints for the Dan Wesson DWX Optics Ready

• Trijicon RMR: plates from Impact Machine (with rear sight) and Impact Machine.

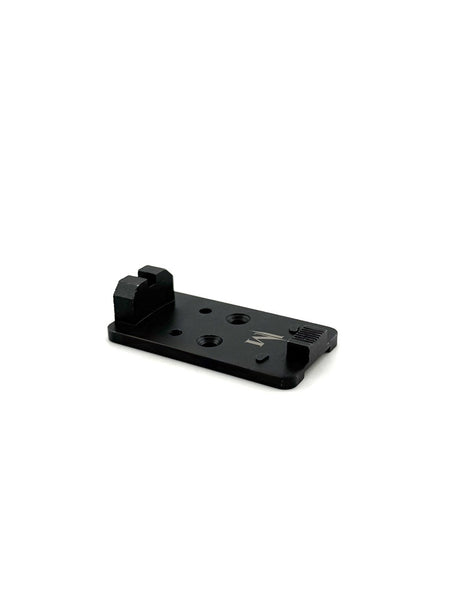

• Shield RMSc: a plate from Impact Machine (with rear sight).
• Leupold DPP: a plate from Impact Machine.
• Aimpoint Acro: a plate from Impact Machine.

Plates for several footprints

• Impact Machine: Shield RMSc and Holosun K-series.

The type letters differ between makers. Always read the footprints in the brackets.

Plates with a rear sight

Some plates have an integrated rear sight, so you keep iron sights with the red dot mounted. You aim through the red dot and still have a sight picture if it fails. Here they are made by Impact Machine for the RMR and RMSc footprints.

Material

Impact Machine makes its plates from steel.

Installation

Remove the cover plate from the optic cut, put the plate in and screw the red dot onto it. Use threadlocker on every screw. No milling and no gunsmith are needed.

All plates at a glance

Which red dot for which footprint

• Trijicon RMR: for example the Holosun 407C, 507C and 508T, Olight Osight and Vector Optics Frenzy-X. See Red dots with Trijicon RMR footprint.
• Shield RMSc: Shield red dots, the Holosun EPS Core, Olight Osight K, S and SE and Vector Optics Frenzy-S. See Red dots with Shield RMSc footprint.
• Holosun K-series: the Holosun 407K and 507K, EPS Carry and SCS Carry. See Red dots with Holosun K-series footprint.
• Leupold DPP: for example the Holosun SCS 320, Olight Osight SE DPP and Vortex Defender ST and XL. See Red dots with Leupold DPP footprint.
• Aimpoint Acro: enclosed red dots such as the Steiner MPS. See Red dots with Aimpoint Acro footprint.

For all plates of this brand, see Optics ready plates for Dan Wesson models.

Frequently asked questions

Can I install an optic plate on my Dan Wesson DWX Optics Ready at home?

Yes. You need no gunsmith and no milling.

1. Remove the cover plate from the optic cut.
2. Screw the optic plate into the cut.
3. Screw the red dot onto the plate.

Put a drop of threadlocker on every screw.

Which red dots will fit my Dan Wesson DWX Optics Ready?

It depends on the plate you choose. For the Dan Wesson DWX Optics Ready we have plates for the Trijicon RMR, Shield RMSc, Holosun K-series, Leupold DPP and Aimpoint Acro footprints. Choose your red dot, find its footprint in the specifications and take the plate with the same footprint.

Can I keep iron sights with a red dot on the Dan Wesson DWX Optics Ready?

Yes. Take a plate with an integrated rear sight. You aim through the red dot and still have iron sights if the red dot fails.
