Red dot mounts for IWI models

This collection contains red dot mounts for the IWI Jericho and Jericho 941. The mount replaces the rear sight, with no permanent modifications.

Two dovetail widths

The Jericho 941 exists with two rear sight dovetail widths. The width is in brackets in the title:

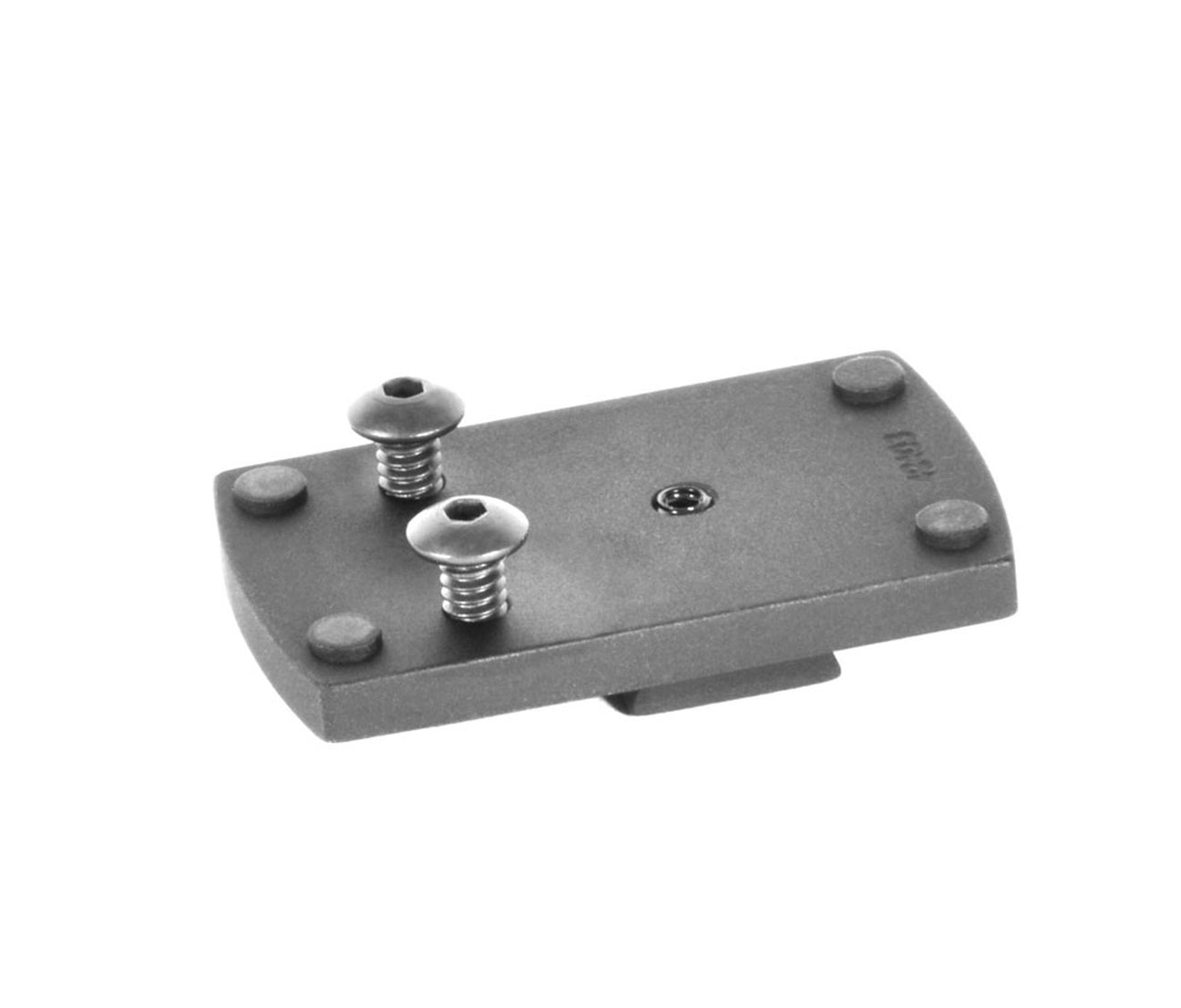

• 11.6 mm: EGW mounts for the Trijicon RMR, and type S for Shield RMSc, Leupold DPP and Holosun K-series.
• 12 mm: an Outer Impact type C for Trijicon RMR, C-More RTS and Docter.

Measure the dovetail of your pistol before you order.

Installation

Drift the rear sight out of the dovetail with a sight pusher or a punch. Push the mount into the same dovetail and fix it. Then screw the red dot onto the mount. No slide milling or permanent modifications are needed. See Installation tools.

See Red dot mounts for IWI Jericho 941. For iron sights, see Sights for IWI models.

Frequently asked questions

Can I put a red dot on my Jericho without an optic cut?

Yes. The mount goes into the rear sight dovetail in place of the rear sight. No milling and no permanent changes, so you can put the rear sight back at any time.

Can I install the mount at home?

Yes, if you have a sight pusher or a punch.

1. Drift the rear sight out of the dovetail.
2. Push the mount into the dovetail and tighten it.
3. Screw the red dot onto the mount with a drop of threadlocker on each screw.

You find the tools in Installation tools.

Which red dots will fit?

It depends on the mount you choose. Every mount takes one footprint or a group of footprints. For Jericho we have mounts for the Trijicon RMR, Shield RMSc, Holosun K-series, Leupold DPP, Docter and C-More RTS footprints.

Find the footprint of your red dot in its specifications and take the mount that names it.

How do I know my dovetail width?

Measure the rear sight dovetail. Our Jericho mounts come for 11.6 mm and 12 mm.
